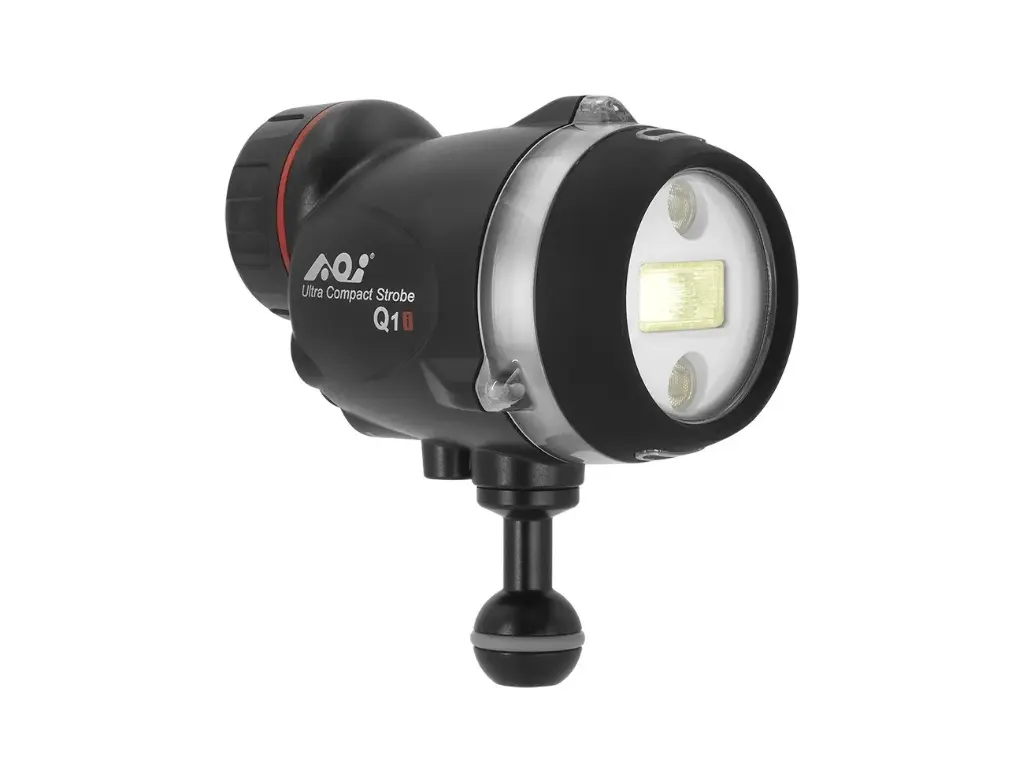

AOI UCS-Q1i – Small & Smart Strobe

https://www.divesea.com.sg/web/image/product.template/35076/image_1920?unique=7d3f462
Brand: AOI
SpecificationUCS-Q1i-WHTUCS-Q1i-BLK
DescriptionUltra Compact Strobe- Q1iUltra Compact Strobe- Q1i
Main Body ColorWhiteBlack
Main Body MaterialPolycarbonate + Glass FiberPolycarbonate + Glass Fiber
Depth Rating60 Meters60 Meters
Strobe Guide NumberG.N.= 22G.N.= 22
Color Temperature5,600K (5,000K with Diffusor)5,600K (5,000K with Diffusor)
Beam Angles (with Diffusor)Horizontal 85°, Vertical 85°Horizontal 85°, Vertical 85°
Flash Recharge Time0.85 Second (Full Power)0.85 Second (Full Power)
Number of Flashes1,500 times (Using Flash Only, Full Power, with 3,100mAh Li-Ion Batteries)1,500 times (Using Flash Only, Full Power, with 3,100mAh Li-Ion Batteries)
Flash Sync.By Fiber Optical Cable (Multi-cores recommended)By Fiber Optical Cable (Multi-cores recommended)
Pre-flashes Sync.Pre-Flash Auto Learning / Pre-Flash CancellationPre-Flash Auto Learning / Pre-Flash Cancellation
Flash ModesTTL Mode and i-Macro ModeOMDS: RC FLASH (Group A, Ch.1) TTL AUTO, MANUAL, FP TTL AUTO, FP MANUAL
SONY: TTL, HSS TTL
Manual Mode6 Steps: 1/64, 1/32+0.5, 1/8, 1/4, 1/2 & FULL6 Steps: 1/64, 1/32+0.5, 1/8, 1/4, 1/2 & FULL
Modelling Flash2 Seconds Flashing Duration2 Seconds Flashing Duration
Flash Test ButtonYesYes
LED Maximum Output700 Lumens700 Lumens
LED Power Control25%, 50%, 100% and OFF25%, 50%, 100% and OFF
LED Color Temp.5600K5600K
LED Beam Angles45°45°
LED Burn Time130 Minutes (Using LED Only, Full Power, with 3,100mAh Li-Ion Batteries)130 Minutes (Using LED Only, Full Power, with 3,100mAh Li-Ion Batteries)
Battery Requirements18650 Li-Ion Rechargeable Battery × 2pcs (Not included)18650 Li-Ion Rechargeable Battery × 2pcs (Not included)
Output CurrentMinimum 5AMinimum 5A
Battery LengthMinimum 69mmMinimum 69mm
Strobe Mounting1" Ball Mount Only (Non-replaceable)1" Ball Mount Only (Non-replaceable)
Dimensions125mm (L) × 77mm (W) × 131mm (H)125mm (L) × 77mm (W) × 131mm (H)
Weight (On Land)Approx. 550g (Batteries included)Approx. 550g (Batteries included)
Weight (Underwater)Approx. 90g (Batteries included)Approx. 90g (Batteries included)
Standard AccessoriesStrobe Diffusor SD-01, Control Knob Extension CKE-01, Spare O-ring Set SOR-01, O-ring Remover ORR-02, Silicone Grease (1.5g), Battery Storage Case BSC-18650-2Strobe Diffusor SD-01, Control Knob Extension CKE-01, Spare O-ring Set SOR-01, O-ring Remover ORR-02, Silicone Grease (1.5g), Battery Storage Case BSC-18650-2

S$ 495.41 495.41 SGD S$ 495.41 Tax Excluded

Not Available For Sale

  • Strobe Colour

This combination does not exist.

Strobes AOI
Contact Us

Please check with us on availability if this item is urgently required.​

Share

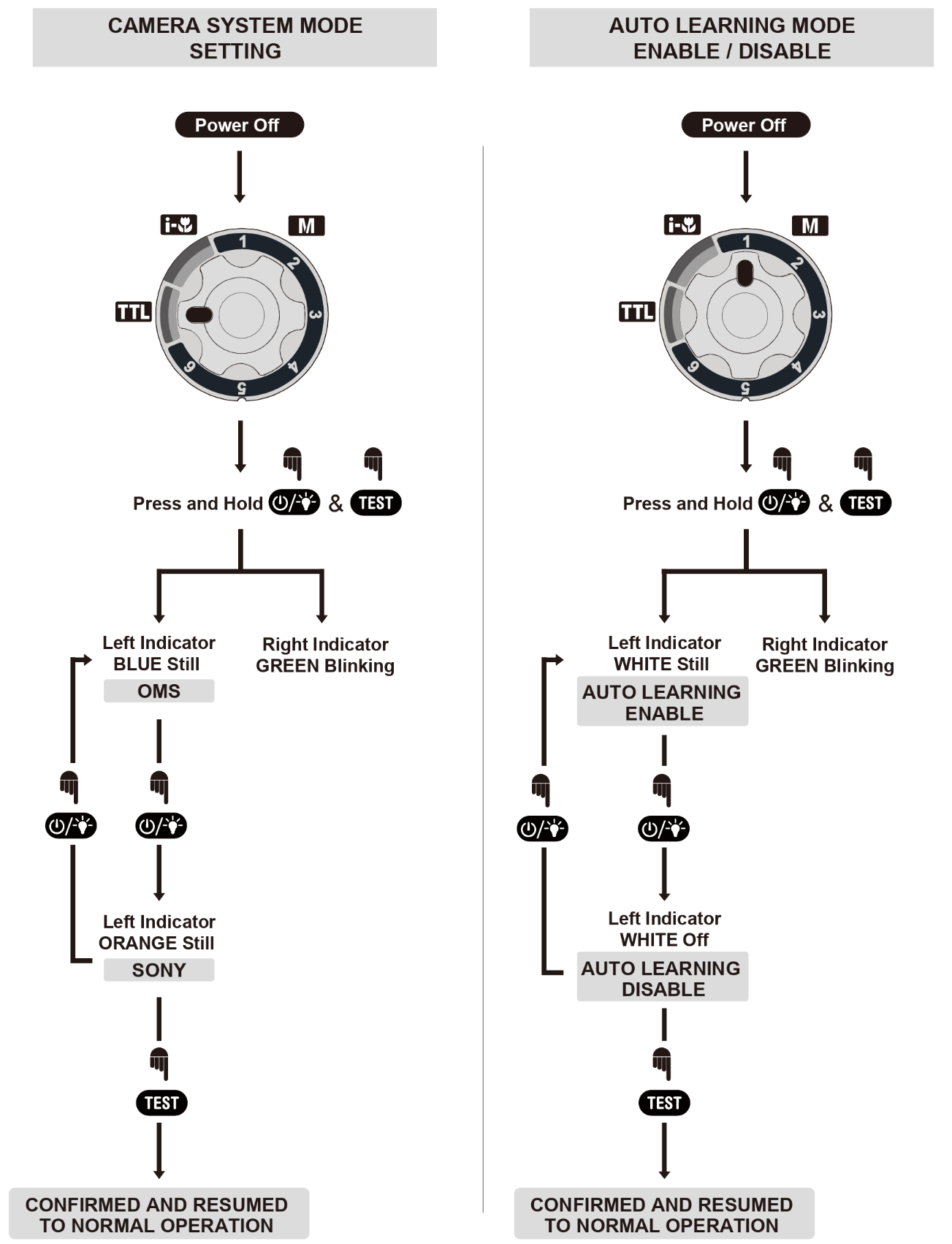

To change mode from OM-Systems TTL to Sony TTL :|

  1. Press and hold both ON and TEST Buttons together till the TEST Button Indicator Light BLINKS
  2. Press ON Button once to change MODE (Orange = SONY TTL and BLUE for OM-S TTL)
  3. Press TEST Button to confirm
