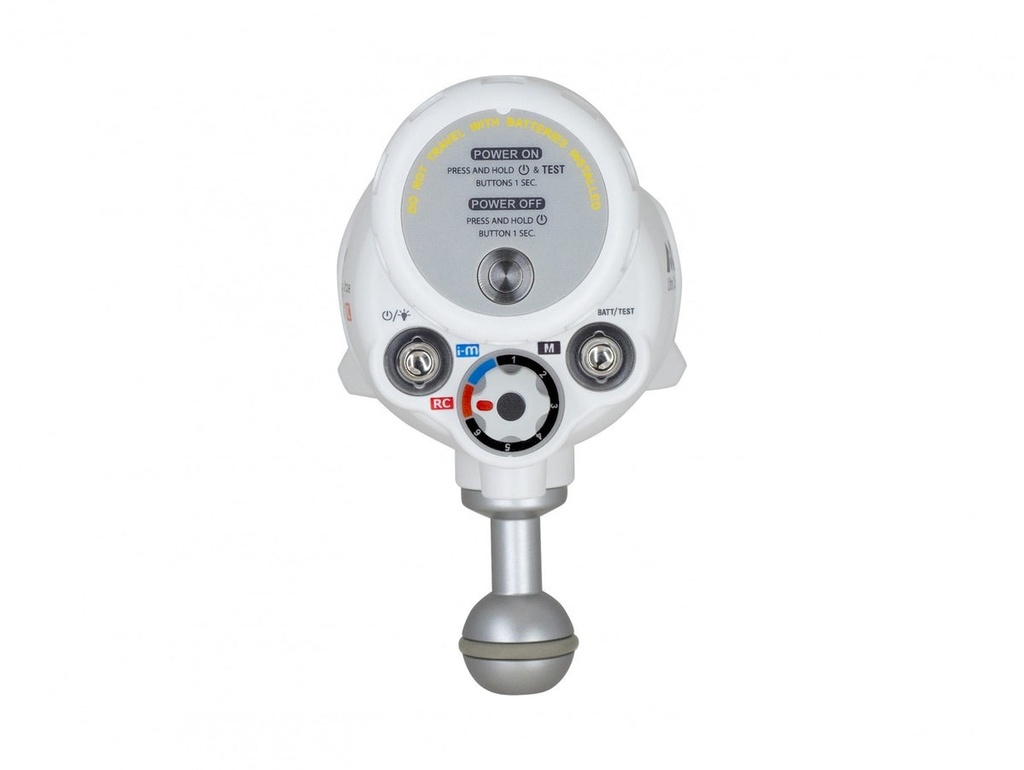

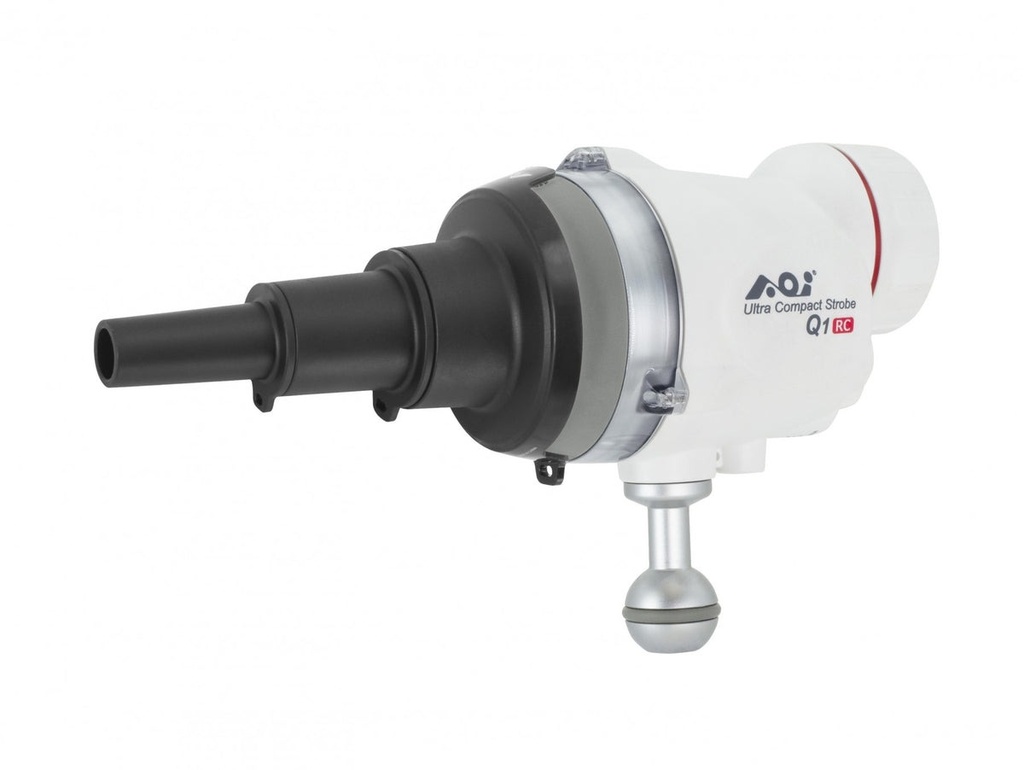

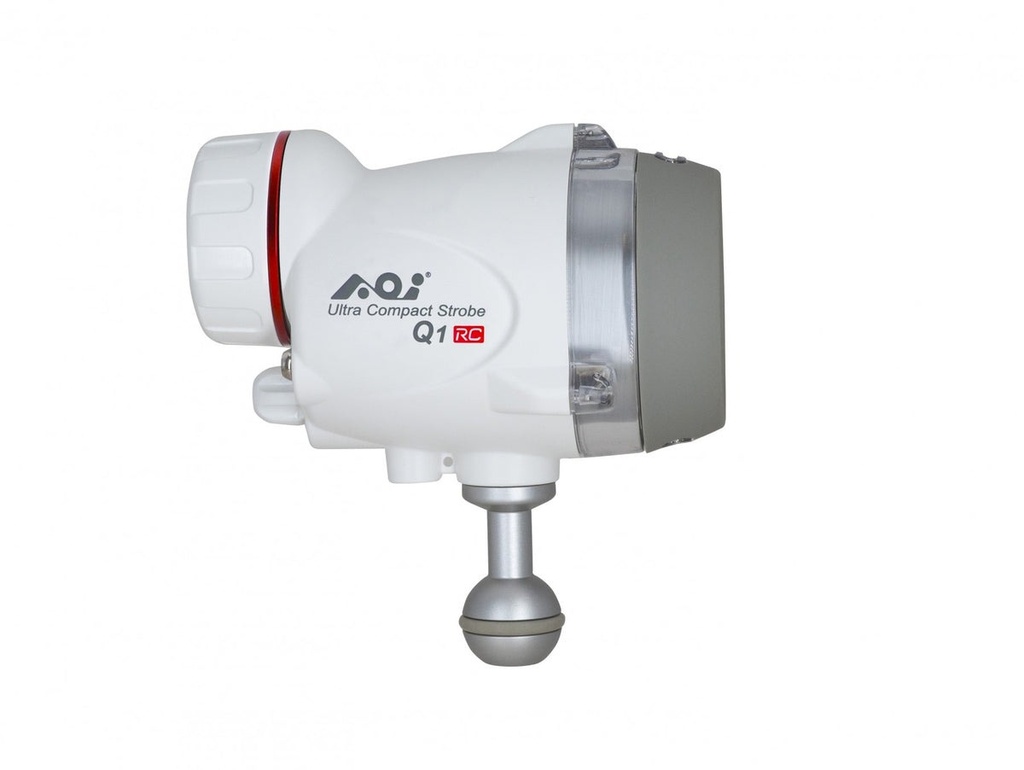

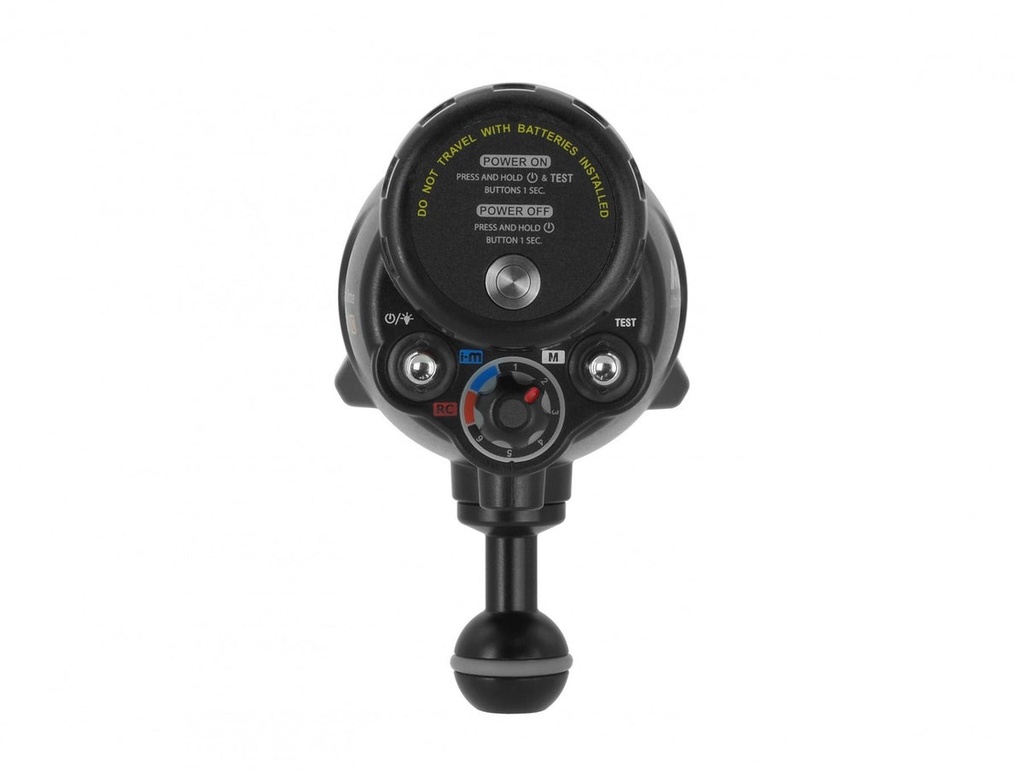

  3. AOI UCS-Q1RC Underwater Ultra Compact Strobe (Black / White)
Global Price

AOI UCS-Q1RC Underwater Ultra Compact Strobe (Black / White)

https://www.divesea.com.sg/web/image/product.template/28936/image_1920?unique=54a1cc9
Brand: AOI
SpecificationUCS-Q1RC-WHTUCS-Q1RC-BLK
DescriptionUltra Compact Strobe- Q1RCUltra Compact Strobe- Q1RC
Main Body ColorWhiteBlack
Main Body MaterialPolycarbonate + Glass FiberPolycarbonate + Glass Fiber
Depth Rating60 Meters60 Meters
Strobe Guide NumberG.N.= 22G.N.= 22
Color Temperature5,600K (5,000K with Diffuser)5,600K (5,000K with Diffuser)
Beam Angles (with Diffuser)Horizontal 85°, Vertical 85°Horizontal 85°, Vertical 85°
Flash Recharge Time0.85 Second (Full Power)0.85 Second (Full Power)
Number of Flashes1,500 times (Flash Only, Full Power, with 3,100mAh Li-Ion Batteries)1,500 times (Flash Only, Full Power, with 3,100mAh Li-Ion Batteries)
Flash Sync.By Fiber Optical Cable (Multi-cores recommended)By Fiber Optical Cable (Multi-cores recommended)
Pre-flashes Sync.Auto LearningAuto Learning
RC ModeOMDS / RC FLASH (Group A, Channel 1)
TTL AUTO, MANUAL, FP TTL AUTO, FP MANUAL		OMDS / RC FLASH (Group A, Channel 1)
TTL AUTO, MANUAL, FP TTL AUTO, FP MANUAL
i-Macro ModeTTL AUTO, MANUAL, Snooting (Group A, Channel 1)TTL AUTO, MANUAL, Snooting (Group A, Channel 1)
Manual Mode6 Steps: 1/64, 1/24, 1/8, 1/4, 1/2 & 1/16 Steps: 1/64, 1/24, 1/8, 1/4, 1/2 & 1/1
Modelling Flash2 Seconds Flashing Duration / Press2 Seconds Flashing Duration / Press
Flash Test ButtonYesYes
LED Maximum Output700 Lumens700 Lumens
LED Power Control25%, 50%, 100% and OFF25%, 50%, 100% and OFF
LED Color Temp.5600K5600K
LED Beam Angles45°45°
LED Burn Time130 Minutes (LED Only, Full Power, with 3,100mAh Li-Ion Batteries)130 Minutes (LED Only, Full Power, with 3,100mAh Li-Ion Batteries)
Battery Requirements18650 Li-Ion Rechargeable Battery × 2pcs (Not included)18650 Li-Ion Rechargeable Battery × 2pcs (Not included)
Output CurrentMinimum 5AMinimum 5A
Battery LengthMinimum 68.5mmMinimum 68.5mm
Strobe Mounting1" Ball Mount Only (Non-replaceable)1" Ball Mount Only (Non-replaceable)
Dimensions125mm (L) × 77mm (W) × 131mm (H)125mm (L) × 77mm (W) × 131mm (H)
Weight (On Land)Approx. 550g (Batteries included)Approx. 550g (Batteries included)
Weight (Underwater)Approx. 90g (Batteries included)Approx. 90g (Batteries included)
Standard AccessoriesStrobe Diffusor SD-01, Control Knob Extension CKE-01, Spare O-ring Set SOR-01, O-ring Remover ORR-02, Silicone Grease (1.5g), Battery Storage Case BSC-18650-2Strobe Diffusor SD-01, Control Knob Extension CKE-01, Spare O-ring Set SOR-01, O-ring Remover ORR-02, Silicone Grease (1.5g), Battery Storage Case BSC-18650-2


S$ 454.13 454.13 SGD S$ 454.13 Tax Excluded

Not Available For Sale

  • Type

This combination does not exist.

Strobes AOI
Contact Us

Please check with us on availability if this item is urgently required.​

Share

To further ensure accurate colour and exposure, users can engage two different modes on the strobe for even greater accuracy. One for general, wider shots and the other for macro shots, when the strobe or camera needs to be closer. Enabling the photographer to concentrate on more important aspects such as composition or the idea of the shot.

Description

PRESS RELEASE

SPECIFICATIONS

MODEL NUMBER AOI UCS-Q1RC-WHT AOI UCS-Q1RC-BLK
DESCRIPTION Underwater Ultra Compact Strobe
MAIN BODY COLOR White Black
MAIN BODY MATERIAL Polycarbonate + Glass Fiber
WATERPROOF LEVEL 60 Meters
STROBE GUIDE NUMBER G.N.= 22
COLOR TEMPERATURE 5,600K (5,000K with Diffusor)
BEAM ANGLES With Diffusor Horizontal- 85°, Vertical- 85°
FLASH RECHARGE TIME 0.85 Second (Full Power)
NUMBER OF FLASHES 1,500 times (Using Flash Only, Full Power and with 3,100mAh Li-Ion Batteries)
FLASH SYNC. By Fiber Optical Cable (Multi-cores Fiber Optical Cable is Recommended)
PRE-FLASHES SYNC. Auto Learning
FLASH MODES RC MODE OMDS / RC FLASH (Group A, Channel 1)
TTL AUTO, MANUAL, FP TTL, FP MANUAL
I-MACRO MODE TTL AUTO, MANUAL, Snooting (Group A, Channel 1)
MANUAL MODE 6 Steps Setting: 1/64, 1/24, 1/8, 1/4, 1/2 & 1/1
MODELLING FLASH 2 Seconds Flashing Duration / Press
FLASH TEST BUTTON Yes
LED LIGHTS MAXIMUM OUTPUT 700 Lumens
POWER CONTROL 25%, 50%, 100% and OFF
COLOR TEMP. 5600K
BEAM ANGLE 45°
BURN TIME 130 Minutes (Using LED Only, Full Power and with 3,100mAh Li-Ion Batteries.)
BATTERY REQUIREMENTS 18650 Li-Ion Rechargeable Battery x2pcs (Battery is not included with the product)
OUTPUT CURRENT Minimum 5A
BATTERY LENGTH Minimum 68.5mm
STROBE MOUNTING 1" Ball Mount Only (Non-replaceable)
DIMENSIONS 125mm (L) x 77mm (W) x 131mm (H)
WEIGHT ON LAND Approx. 550g (Batteries included)
UNDERWATER Approx. 90g (Batteries included)
STANDARD ACCESSORIES Strobe Diffusor for Q1 Series SD-01
Control Knob Extension for Q1 Series CKE-01
Spare O-ring set for Q1 Series SOR-01
O-ring Remover ORR-01
Silicone Grease (5g) SIGR-5
Battery Storage Case BSC-18650-2 (Rechargeable Battery is not included)

*Specifications and Appearances are subject to change without prior notice.
